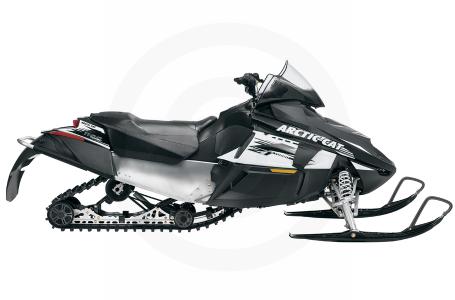

2009 Arctic Cat Z1 Turbo
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    SPECIFICATIONS
    • ENGINE TYPE, DISPLACEMENT COOLING AND CYLINDERS: Suzuki 4-stroke, 1056cc, liquid, twin
    • BORE x STROKE: 98 mm x 70 mm
    • LUBRICATION: dry sump
    • IGNITION: full transistor/coil at plug
    • CARBURETION: 46 mm single throttle body EFI
    • EXHAUST: turbocharger with stainless steel
    • DRIVE: Arctic (rpm sensing)
    • DRIVEN CLUTCH: Arctic (roller cam) ACT drive system
    • SKI STANCE: 43 in.
    • SKI MATERIAL: UHMW plastic saddleless
    • FRONT SUSPENSION: AWS VII double-wishbone A-arms with IFP shocks and sway bar
    • FRONT TRAVEL: 9.5 in.
    • REAR SUSPENSION: slide-action frame with coupling blocks, adjustable torsion springs and IFP rear arm shock
    • REAR TRAVEL: 13.5 in.
    • TRACK WIDTH x LENGTH x LUG: 15 in. x 128 in. x 1.0 in.
    • BRAKES: hydraulic disc
    • FUEL CAPACITY: 10.8 gal.
    • LENGTH x WIDTH: 118 x 47.25 in.
    • HEADLIGHT: dual halogen (4-bulb)
    • STANDARD EQUIPMENT: digital/analog tachometer, digital/analog speedometer, dual stage trip odometer, electric gas gauge, low oil light, low battery light, coolant overheat light, clock, electric start, reverse, high/low hand warmer, high/low thumb warmer, accessory outlet, mid-height windshield
    • OPTIONAL EQUIPMENT: mirrors, high windshield, tether switch, 2-passenger seat, hitch, heated seat, engine heater
    • AVAILABLE COLORS: Black

    Specifications

    Engine
    Engine Type Suzuki 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 mm x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and IFP rear arm shock
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 43 in.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.0"
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Windshield Mid-height; Optional: High windshield
    Color Black
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low hand warmer; High/low thumb warmer
    Reverse Standard
    Mirrors Optional

    Compare Models

    		 Print








    Year 2009
    Manufacturer Arctic Cat
    Model Z1 Turbo
    Style Performance
    MSRP* $12,499.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Engine
    Engine Type Suzuki 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 mm x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield Mid-height; Optional: High windshield
    Color Black
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low hand warmer; High/low thumb warmer
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and IFP rear arm shock
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 43 in.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.0"
