$1,722.00

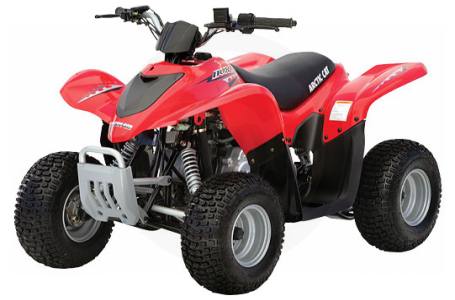

2006 Arctic Cat DVX 50


Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

  • Model: DVX 50
  • Displacement (cc): 49
  • Engine Type: SOHC 4-stroke 2-valve
  • Bore & Stroke (mm): 39 x 41.1
  • Cooling System: Air
  • Transmission: Automatic CVT
  • Drive System: 2 WD
  • Overall Width (in): 34.13
  • Overall Height (in): 36
  • Overall Length (in): 56.75
  • Wheel Base (in): 38.4
  • Suspension Travel Front (in): 2.8
  • Suspension Travel Rear (in): 2.9
  • Ground Clearance (in): 6
  • Suspension Type: Front Single A-arm
  • Suspension Type: Rear Swing Arm
  • Front Brakes: Drum
  • Rear Service Brake: Hydraulic Disc
  • Tire Front: 16x8-7
  • Tire Rear: 16x8-7
  • Wheel Width - Front (in): 7x5.5
  • Wheel Width - Rear (in): 7x5.5
  • Max Fuel Capacity: 1.45/5.5L
  • Rack Capacity - Front (lbs): NA
  • Rack Capacity - Rear (lbs): NA
  • Side storage Capacity (lbs): NA
  • Box Capacity (lbs): NA
  • Under Hood Capacity (lbs): NA
  • Towing Capacity (lbs): NA
  • Alternator Capacity: NA
  • Speedometer: NA
  • Odometer: NA
  • Dry Weight (lbs): 230

Specifications

Engine
Engine Type SOHC 4-stroke 2-valve
Displacement 49 cc
Bore x Stroke 39 x 41.1 mm
Cylinders 1
Engine Cooling Air
Chassis
Front Suspension Single A-arm
Front Travel 2.8 in.
Front Brake Type Drum
Front Tires 16x8-7
Rear Suspension Swing Arm
Rear Travel 2.9 in.
Rear Brake Type Hydraulic Disc
Dimensions/Capacities
Dry Weight 230 lbs.
Fuel Capacity 1.45 gal. / 5.5 l
Ground Clearance 6 in.
Wheelbase 38.4 in.
Drive Train
Drive Train 2 WD
Transmission Automatic CVT
General
Colors Red, Arctic Green

Compare Models

Print








Year 2006
Manufacturer Arctic Cat
Model DVX 50
Style Sport
Chassis
Front Suspension Single A-arm
Front Travel 2.8 in.
Front Brake Type Drum
Front Tires 16x8-7
Rear Suspension Swing Arm
Rear Travel 2.9 in.
Rear Brake Type Hydraulic Disc
Rear Tires
Frame
Dimensions/Capacities
Dry Weight 230 lbs.
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 1.45 gal. / 5.5 l
Ground Clearance 6 in.
Machine Dimensions (LxWxH)
Wheelbase 38.4 in.
Drive Train
Drive Train 2 WD
Final Drive
Transmission Automatic CVT
Engine
Engine Type SOHC 4-stroke 2-valve
Displacement 49 cc
Bore x Stroke 39 x 41.1 mm
Cylinders 1
Engine Cooling Air
Fuel System
Starting System
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red, Arctic Green
Warranty
